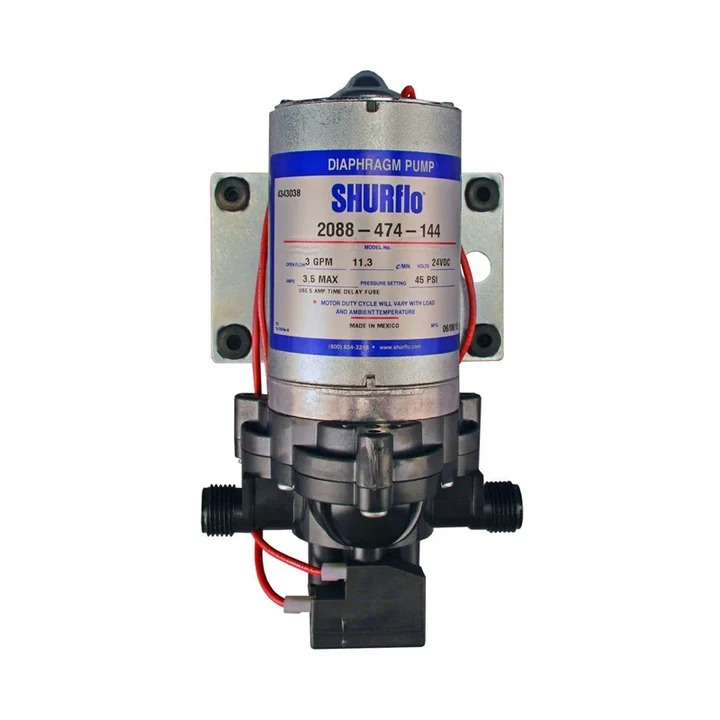

Shurflo 2088-474-144 24V Standard Demand Pump

Product Desciption

The SHURflo 2088-474-144 Delivery Pump delivers reliable performance in high-flow, moderate-pressure applications. The 2088 series pumps are used in a variety of transfer and dispense-on-demand applications. They can be mounted in any position and are designed for easy maintenance. Designed to be used for potable water and industrial transfer.

Features
• 3.0 GPM flow rate.
• Voltage – 24 VDC nominal.
• Positive Displacement 3 Chamber Diaphragm.
• Santoprene® Valves & Diaphragm.
• Liquid Temp – Max 55° C.
• Cam – 3.0 Degree.
• Pressure Switch – 45 psi.
• Ports – 1/2″, 14 Male Parallel Thread.
• Self-Priming (up to 10 vertical feet).
• Check Valve – Prevents reverse flow.
• Ground wires with base plate.

Technical Specifications
Pump Type Delivery
• Inlet – 1/2″ (14 Male Parallel Thread).
• Outlet – 1/2″(14 Male Parallel Thread).
• Voltage – 24VDC.
• Power Cord – None

Operating Conditions
• Liquid Temperature – 130 Max °F.
• Cut in Flow Rate – 25 / 94.6 (+/-5) PSI gpm / lpm.
• Cut out Flow Rate – 45 / 170 PSI gpm / lpm.

Dimensions
• Length 8.60 ” (21.84cm) x Height 4.40 ” (11.2cm) x Width 5.0 ” (12.7cm).

Materials
• Housings – Polypropylene.
• Valves – Santoprene.
• Diaphragm – Santoprene.
• Internals – Santoprene.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
