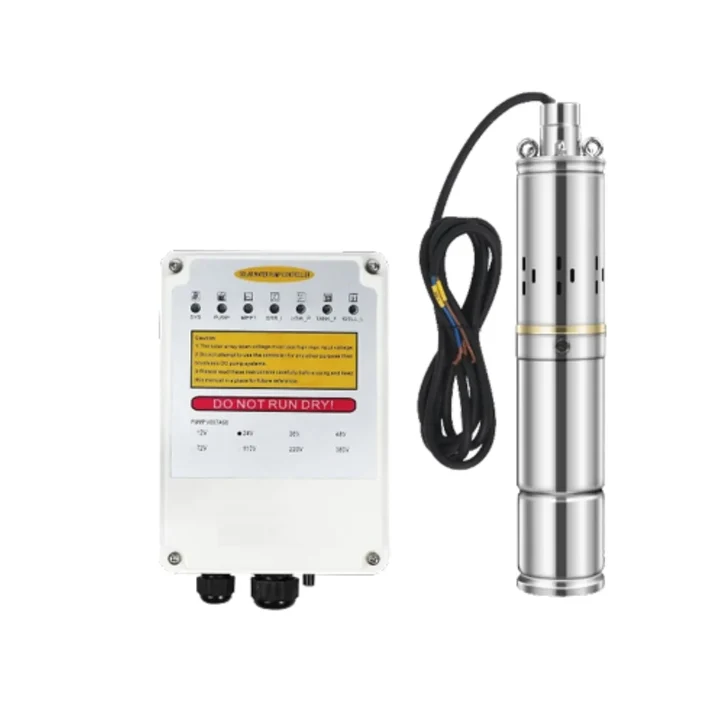

Bundu Power 120m 48V Solar Borehole Eco Pump

R 6 500,00

Category: Uncategorized

Description
Reviews (0)

100% OFF GRID Solution
NO Batteries or AC Required
NO Timers required
MPPT Controller
* Optional AC Power Supply

Model	JS3-1.3-50-ECO
Voltage	24 V
Power	120 Watts
Max Flow Rate	1.3 m³/h
Max Head	50 m
Warranty	12 Months

GENERAL DATA

Outlet	19mm (0.75 in)
Pump Diameter	76 mm
Type of Pump	Screw
Submersible Depth	30 m
Controller Input Voltage	24V – 63V (VoC)
What’s Included	Pump, Controller, Float Level Switches and 6m Cable

PACKED DIMENSIONS

Length	450 mm
Width	305 mm
Height	150 mm
Weight	7.3 kgs

SOLAR PANEL REQUIREMENTS

PANELS	VOLTAGE (VMP)	QTY
545 Watts	49.4 V	2

What is included:

1 x Bundu Power Cable Joint Kit
1 x Bundu Power 2 Way Pump Box

PLEASE NOTE: Submersible Cabler (6mm 3 Core) sold separately.

PLEASE NOTE: Exceeding the Input Voltage (24) to the controller can damage the controller and void your warranty. Please ensure the correct panel configuration before connecting the pump controller.

KEY POINTS

Solar Panels oversized by 30%. i.e: A 500Watt pump should use 650Watts of Panels
Output based on 5.5 hours a day at max capacity. The pump will run longer, but slower in the mornings and evenings.
Submersible Depth = How far beneath the surface of the water. Not depth of the borehole.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
