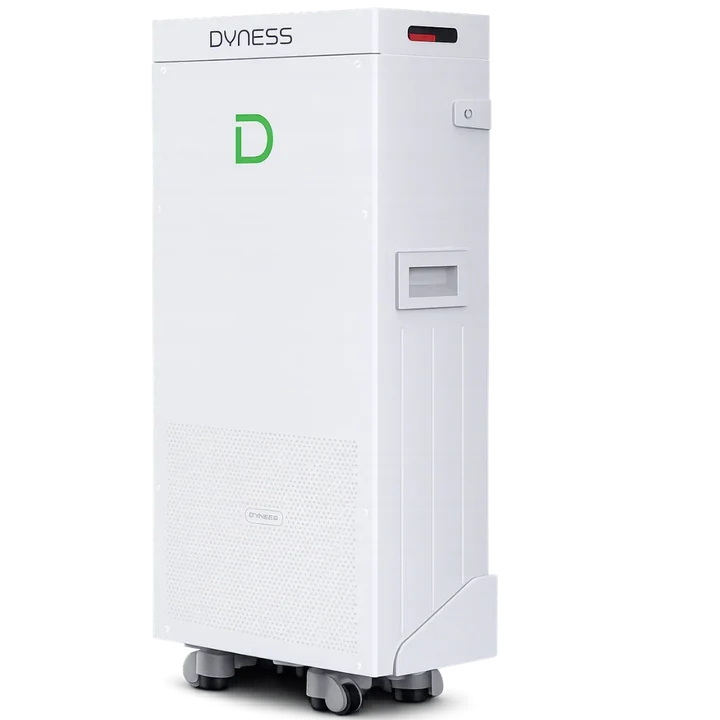

Dyness 16KW Lithium Battery PowerBrick Max

Dyness 16KW Lithium Battery PowerBrick Max

NB: Wheels and cover NOT included .

PowerBrick Max is a low-voltage product designed for household energy storage scenarios with a stylish and elegant appearance. It uses a high-capacity 314h battery to support 50 parallel units with a capacity range from 16.07kWh to 803.5kWh. It provides a highly safe, reliable, intelligent and friendly experience.  Intelligent fire extinguishing system, detects and extinguishes fire in 5s

Battery Type:  LiFePO4(LFP)

Normal Battery Energy:  16.076kWh

Usable Battery Energy:  15.272kWh

Nominal Capacity: 314Ah

Nominal Voltage:  51.2V

Operating Voltage: 44.8~57.6V

Recommended Charge and discharge C Rate:  0.45C(140A)

Max Discharge C Rate:  0.64C(200A)

Peak Discharge Current (25°):  300A,2min

Recommended Charge & Discharge Power:  7.168KW

Max Charge Power:  10.24kw

Max. Discharge Power:  10.24kW

Depth of Discharge (DOD) 95%

Discharge Temp. Range:  -20°C~55°C

Net Weight:  116KG

Dimensions:  435x233x857mm

Protection Level :  IP20

Communication:  CAN/RS485

Cycle life:  8000 Cycles

User Interface:  WIFI+APP

Safety Protection:  Built in Aerosol fire extinguisher

Warranty Period:  10 years
