Dyness Tower T10 10.66kWh High-Voltage Battery – Scalable Energy Storage Solution

Reliable, Efficient, and Scalable Solar Battery Storage

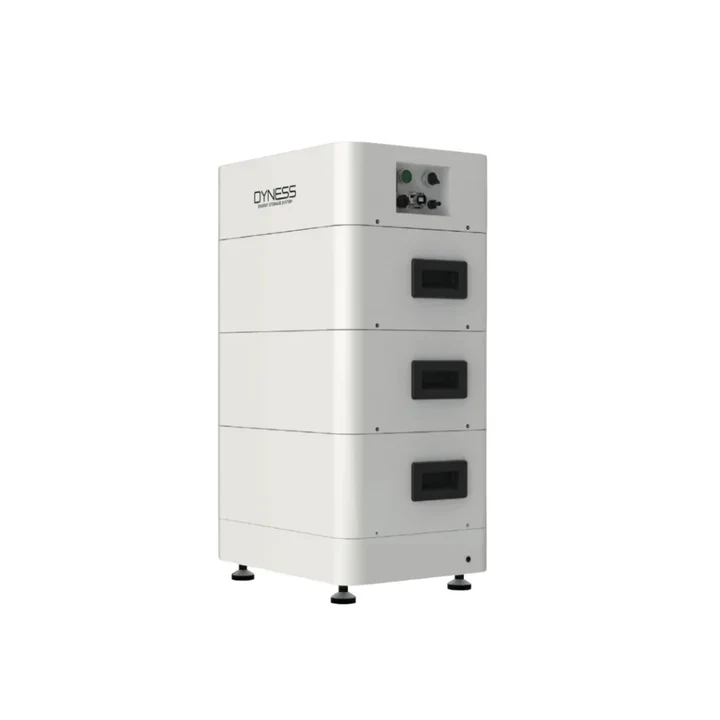

The Dyness Tower T10 is a high-voltage lithium iron phosphate (LiFePO4) battery, designed for residential and commercial solar energy storage. With a 10.66kWh nominal capacity and 95% depth of discharge (DOD), this battery maximizes usable energy, making it an efficient and long-lasting backup power solution.

Engineered for seamless integration with leading inverter brands, the Tower T10 enhances solar self-consumption, reduces grid dependence, and ensures uninterrupted power supply.

Key Features & Benefits:
High-Capacity Storage: 10.66kWh nominal energy with 10.127kWh usable capacity.
Scalable & Modular: Expandable system to accommodate growing energy needs.
Optimized for High Voltage: Operating voltage range of 252V – 328V for enhanced efficiency.
Fast Charging & Discharging: 6.39kW continuous charge/discharge rate for reliable power delivery.
Long Cycle Life: 6,000+ charge cycles for durability and long-term performance.
95% Depth of Discharge (DOD): Maximizes battery utilization.
IP55 Protection Rating: Ensures resistance to dust and water for both indoor and outdoor installations.
Smart Communication: CAN/RS485 integration for seamless monitoring and inverter compatibility.
Broad Inverter Compatibility: Compatible with top brands including Goodwe, Solis, Deye, Growatt, and more.
Technical Specifications:
Model: Tower T10
Battery Type: LiFePO4 (Lithium Iron Phosphate)
Battery Modules: 3
Nominal Energy: 10.66kWh
Usable Energy: 10.127kWh
Nominal Voltage: 288V
Operating Voltage Range: 252V – 328V
Capacity: 37Ah
Max Continuous Charge/Discharge Power: 6.39kW
Recommended Depth of Discharge: 95%
Cycle Life: ≥6,000 Cycles
Communication Interface: CAN / RS485
Protection Level: IP55
Color: White
Physical Dimensions & Weight:
Size (W × D × H): 504 × 380 × 900 mm
Weight: 146 kg
Compatible Inverters:
Goodwe, Solis, Deye, Solplanet, Solinteg, Sunways, SAJ, Sinexcel, Hoymiles, Growatt, ATESS, and more.
