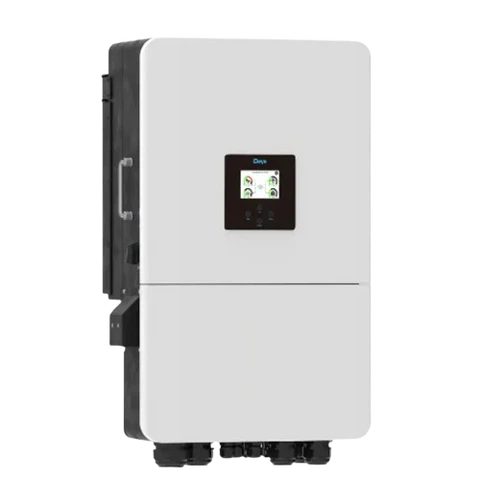

Deye 15kW Hybrid Inverter (Three Phase) – SUN-15K-SG05LP3-EU-SM2

R 28 000,00

Category: Uncategorized

Description
Reviews (0)

Technical specifications :

230V/400V three-phase pure sine wave inverter
Max PV input power : 24000W
MPPT voltage range : 160 – 650Vdc
Max PV input current (Imp) : 36A + 36A
Max PV input Short-Circuit current (Isc) : 54A + 54A
No. of MPPT : 2
No. of strings per MPPT : 2
Rated AC input : 15000W
Max AC input : 16500W
Rated AC input/output current (A) : 22.8/21.8A
Max AC input/output current (A) : 25/24A
Power factor : 0.8
Max Efficiency : 97.6%
Battery Type : Lead-acid OR Lithium-ion

IP rating :

IP65

Certification :

Grid Regulation : IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety / EMC Standard : IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Protection :

DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection,

AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch,

Insulation Impedance Detection, Residual Current Detection.

Features :
