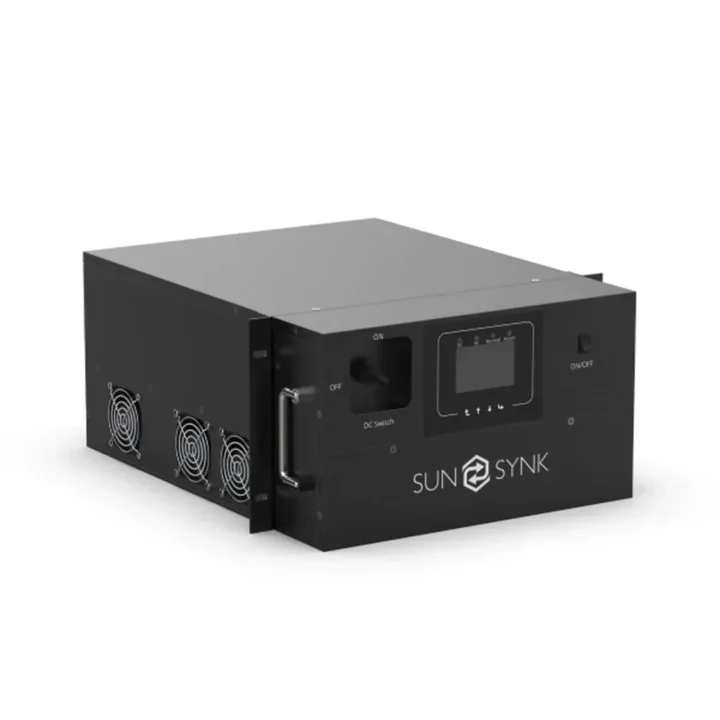

Sunsynk 7.6KW 48V Rack Mount Hybrid Inverter

Battery Input Data

• Battery Type: Lead-acid or Lithium-ion
• Battery Voltage Range: 40~60V
• Max. Charging Current: 190A
• Max. Discharging Current: 190A
• Charging Curve: 3 Stages/Equalisation
• External Temperature Sensor: Optional
• Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS

PV String Input Data

• Max. DC Input Power: 9880W
• PV Input Voltage: 370V (100V~500V)
• MPPT Range: 125~425V
• Start-up Voltage: 150V
• PV Input Current:22A+22A
• No. of MPPT Trackers: 2
• No. of Strings Per MPPT Tracker: 2+2

AC Output Data

• Rated AC Output and UPS Power: 7600W
• Max. AC Power: 8360W
• Peak Power (off-grid): 2 times of rated power, 10 S
• AC Output Rated Current: 31.7A/33A
• Max AC Output Current: 34.9A/36.3A
• Max Continuous AC Passthrough: 50A
• Output Frequency and Voltage: 50/60Hz; 120/240Vac(split phase), 208Vac(2/3), 230Vac(single phase)
• Grid Type: Split phase, 2/3 phase, Single phase
• Current Harmonic Distortion: THD<3%(Linear load<1.5%)

Efficiency

• Max. Efficiency: 97.60%
• MPPT Efficiency: 96.50%
• Euro Efficiency: 99.90%

Integrated Protection

• PV Arc Fault Detection, PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity
• Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output
• Shorted Protection, Output Over Voltage Protection

General Data

• Operating Temperature Range: -25~60°C, >45°C Derating
• Cooling: Fan
• Noise: <30
• Communication with BMS: RS485; CAN
• Warranty: 5 years
