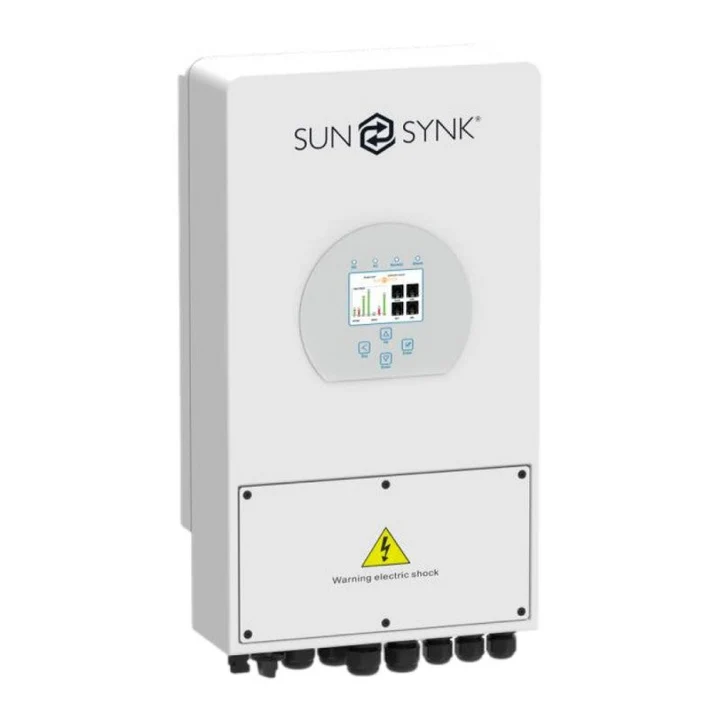

Sunsynk 3.6kW 48V Single Phase Hybrid Inverter

• Easy and simple to understand display.
• Supporting Wi-Fi or GSM monitoring.
• Visual power flow screen.
• Built-in 2 strings of MPP trackers.
• Smart settable 3-stage MPPT charging for optimized battery performance.
• Auxiliary load function.
• Parallel / multi-invert function grid-tied and off-grid.

Specifications

• Inputs:
  • PV solar
  • AC grid power
  • Batteries
  • Generator
• Output voltage – 220/230/240Vac
• Continuous power – 3600W
• Backup power – 3600W
• DC – 48V
• Battery charger – 90A
• Transfer time <= 10ms
• Battery charger adjustable for battery bank size and type
  • Can charge Lead Acid and Li-ion batteries
  • Li-ion battery charging self-adapts to BMS
• Solar Input
  • Max power input – 4680W
  • Max V DC input – 370V (100V~500V)
  • Max current input – 2 x 11A
  • MPPTs – 1
  • MPPT Range – 125~425V
• Multi-core processor design and advanced MPPT control
• High reliability and response speed
• Programmable export
• Works parallel on or off-grid
• Single-phase operation
• Multiple operating modes:
  • Grid-tie only
  • Hybrid
  • Off-grid
  • Battery only
• Additional features
  • AC couple – For additional PV input
  • 6 stages time of use settings
• IP65
• Warranty: 5 years.
