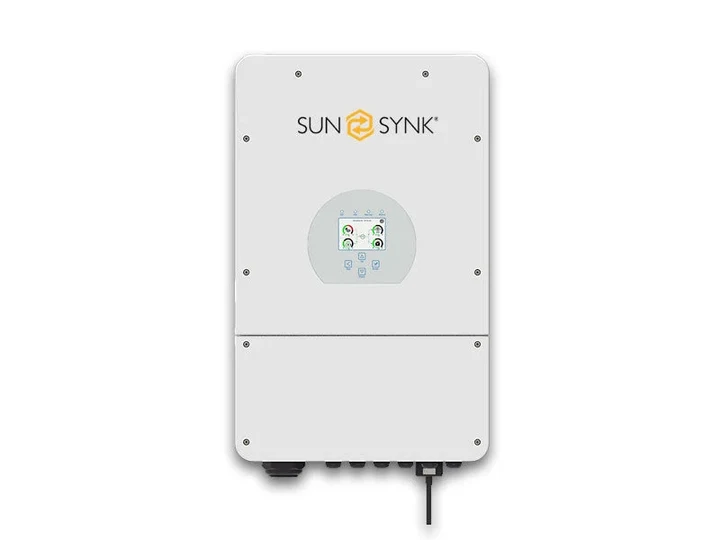

SUNSYNK 16kW Hybrid Inverter 3 Phase
R 36 743,00
- SUNSYNK 16kW Hybrid Inverter (3 Phase) – SUNSYNK MAX
- Model SUNSYNK MAX
- The Most Powerful Low-voltage Inverter In The World.
- Achieves a Maximum Output Power of 16kW & Battery Charge Current of 300A
- Manages Power-flow from multiple sources such as Solar, Main Power (Grid) & Generators, then effectively storing & releasing power as & when utilities require.
- Colourful Touch LCD
- Storing energy from diesel generator supported.
- Wi-Fi & GSM monitoring supported.
- Equipped with Visual power flow screen.
- Parallel/multi invert function grid-tied & off-grid.
- Protection Degree: IP65
- Noise Level: <30dB
- Maximum Charge & Discharge Current: 300A
- Battery Charging Strategy: Self-Adaptation to BMS
- Maximum DC Input Power: 18000W
- MPPT Range: 250-450V
- Start-up Voltage: 150V
- Maximum On-Grid AC Power: 16000W
- Maximum Off-Grid AC Power: 13000W
- AC Output Rated Current: 65A
- Maximum AC Current: 70A
- Frequency Range: 45-55Hz
- Voltage Range: 211-264V
- Maximum Efficiency: 97.60%
- MPPT Efficiency: 99.90%
- Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
- Battery Voltage Range: 43-60V
- Communication with BMS: CAN/RS485
- Fan Cooling
- Operation Temperature: -25°C to 55°C
- Installation Type: Wall Mounted.
- Weight: 34.5Kg
- Dimensions (W x H x D): 422 x 702 x 281 mm
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- 5 Year Limited Product Warranty.
- Recommended Solar Panel Configuration:
- Min 5 Panels – Max 24 Panels (Refer to breakdown below for Panel set up per MPPT)
- First MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on first MPPT)
- Second MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on second MPPT)
- Third MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on third MPPT)
- Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
