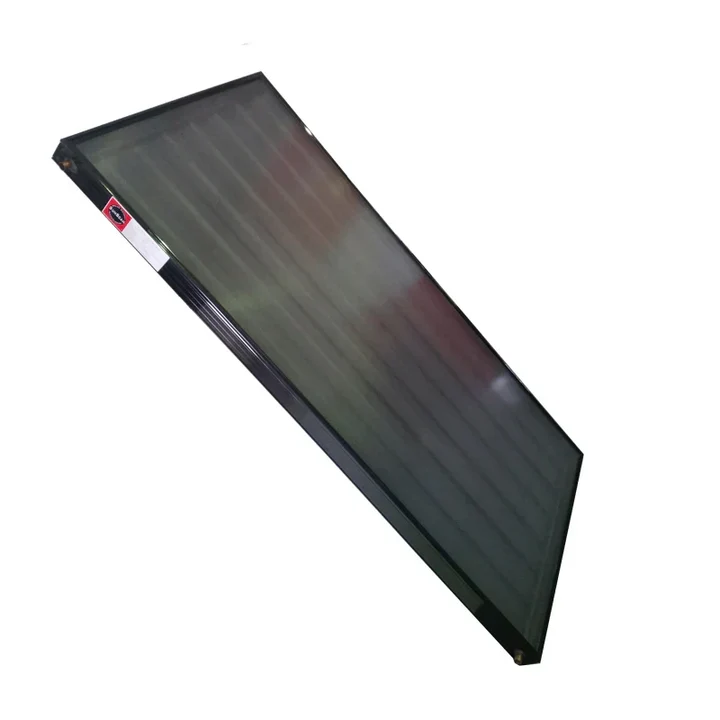

SunScan 2.4m² Vertical Flat Plate Collector

Features and Benefits
• Unique Copper Aluminium Selective coating offers higher adsorption, reduces loss, longer life.
• Unique air filtration vents that help to prevent moisture build up on the inside of the panel.
• Low Iron prismatic glass offers max transmittance, less reflected radiation.
• Ripped absorber surface offers higher performance.
• Aluminium Anodized Casing, no rust.
• Risers are sonic welded.
• Probe pocket measure temperature.
• 5 year warranty.

Technical Specifications
• Overall area (m²) – 2.4.
• Absorber area (m²) – 2.21.
• Aperture area (m²) – 2.24.
• Risers – 9. 11.
• Dimensions (L x W x H)(mm) – 2005 x 1200 x 80.
• Weight (kg) – 38Kg.
• Absorber Capacity (L) – 1.99.
• Frame material – Aluminium-alloy.
• Surface Material – Aluminium-alloy.
• Back plate – Chromodeck.
• Absorber Sheet – Cu/Al, oxide film.
• Absorption [%] – 94%.
• Emission [%] – 8 (80°±5°).
• Manifold Ø (mm) – Ø 22 x 0.75.
• Risers Ø (mm) – Ø 10 x 0.5.
• Insulation Material – Glass Wool.
• Side Insulation Thickness – 25mm.
• Back Insulation Thickness – 35mm.
• Glass – Woven ultra-white toughened solar safety glass.
• Cover Thickness – 3mm.
