Solis 40kW S5 3 Phase Quad MPPT – DC

Solis 40kW S5 3 Phase Triple MPPT – DC

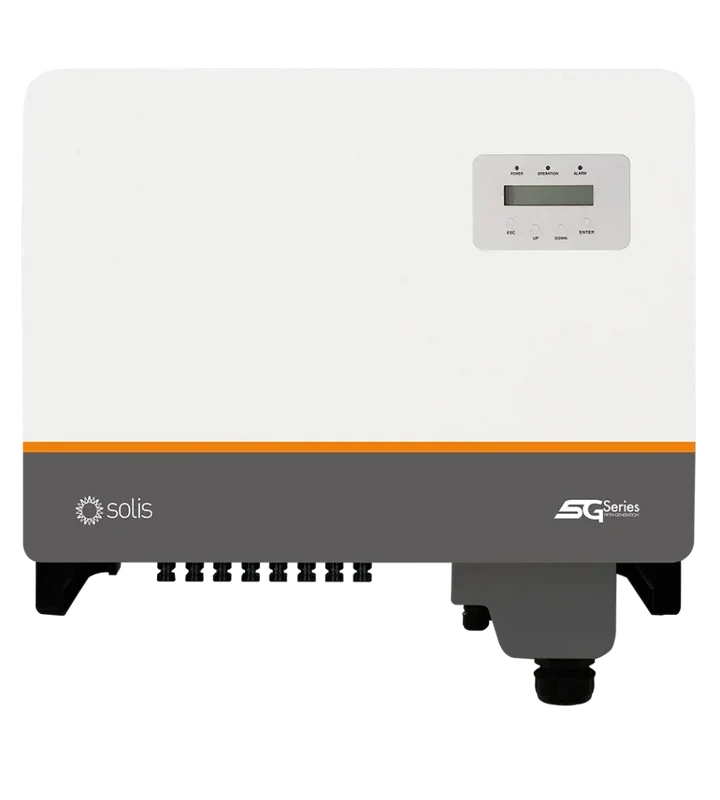

S5-GC40K – Series 5 Three Phase Grid-Tied Inverter

Product Features:

Max. efficiency of 98.7%
Type-II over-voltage surge protection for both DC and AC
Wide voltage range – Ultra low start-up voltage of 180V and max PV input voltage of 1100V
32A input per MPPT, 16A input for each PV string
Maximum AC output power of 44kW
4 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
Intelligent monitoring, Smart I-V Curve Diagnosis
Integrated AFCI (DC arc-fault circuit protection)
IP66 Rated
DC reverse-polarity protection
5-year standard warranty, extendable to 10 or 20-years.
Register on SolisCloud, to support remote upgrade and control.

SA: NRS-097-2-1 Certified and CoCT Approved

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. We will not be held liable for any product malfunctions as a result of incorrectly installed systems.
