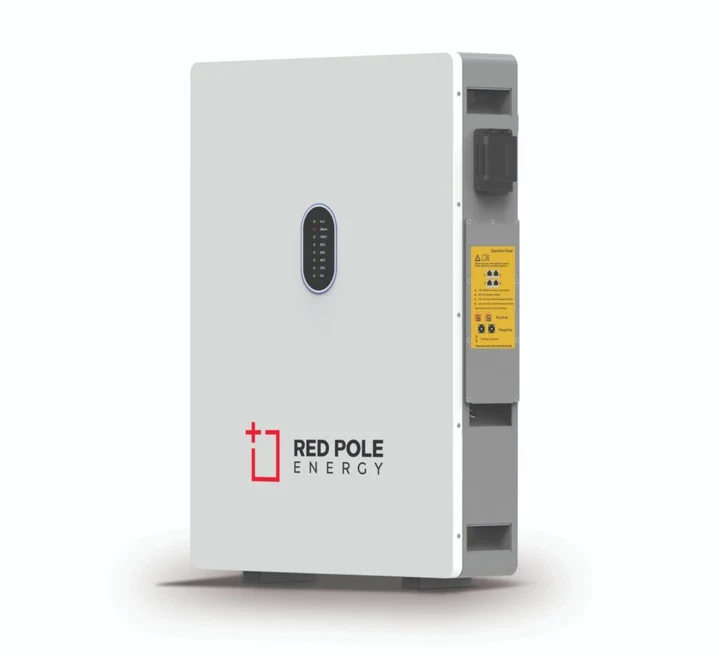

Red Pole Energy Vital 10 51.2V 200Ah 10.24kWh LiFeP04 Battery

Vital-10 is a Lithium Iron Phosphate (LiFeP04) battery designed for residential energy storage applications and works together with 48v inverters. The unit is designed to be wall mounted or floor standing, compact, with easy access to communication ports and battery connection terminals on the side of the unit.

Designed for backup power, off-grid, time of use, and self-use applications, the Vital-10 Lithium battery will provide you with backup during a power outage, or act as storage for your solar system so you can use the energy stored from the daytime to provide you with power at night.

Vital-10 lithium battery has a built-in BMS (Battery Management System). The BMS keeps the cells balanced to extend cycle life and the BMS protects the battery against over-discharge, over-charge, over-current and high/low temperature; the system can automatically manage the charge state, discharge state and balance state.

Multiple Vital-10 lithium batteries can be connected in parallel to expand capacity and power, with up to 8 Vital-10 lithium battery that can be connected in parallel.

The battery is warranted to remain serviceable for more than 10 years, if it is charged and discharged daily at recommended rates at room temperature (25°C).

Performance & Warranty

• 10 year Warranty
• 6000+ Cycles
• 1C Rating

Easy Installations

• Quick Connect cable Terminal, Cable Included
• Wall Mount or Free Standing
• BMS Compatible with leading Inverter Brands

LifePO4

• Ultra Safe Lithium Iron Phosphate Cells ( LiFeP04/ LFP)
• Built-in Isolator Switch for Added Protection
• IP65 Protection Rating

Expandable Capacity

• Max 15 Units in Parallel to Extend Capacity to 75kW
• Full Communication Between Units
• Auto Maste-Slave Setup

Technical Specifications

• Usable Capacity : 10.24kWh
• Nominal Voltage : 51.2 VDC
• Nominal Capacity : 200Ah @ 0.2C
• Operating Voltage Range: 45.6v- 56.16 VDC
• Weight : 96.5kg
• Warranty : 5 Years. Optional extended warranty of 10 years available.
• Charge Voltage : 55.68 – 56.16 VDC
• Discharge Voltage Minimum : 45.6 VDC
• Standard Charge / Discharge Current : 100A
• Max Charge / Discharge Current  : 200A
• Display :  None
• Cycle Life @ 0.5C : >= 6000 cycles @ 80% DOD, 60% EOL
• Over Voltage Cutout : 58.4 VDC
• Under Voltage Cutout : 44.8 VDC
• Dimensions : 800mm x  590 mm x 142mm (L x W x H )
• Operating Temp Range : Charge: 0°C to 55°C | Discharge: -20°C to 60°C
• Protection : Over-voltage | Under-voltage | Short circuit | Dust and water resistant
• IP Class : IP65
• Ports : 1x CAN-bus, 2x RS-485, 1x RS232
• Parallel : Parallel connection up to 8 packs with full communications
• Battery Case : Floor Standing or Wall Mounting Metal Chassis
• Weight 132 kg
• Dimensions 98.6 × 18.8 × 71.5 cm

What’s included?

• 1 x 51.2v 200Ah (10.24kWh) Lithium (LiFeP04) Battery
• 1 x Installation Manual
• 1 x Wall Mounting Brackets
• 1 x Set of Battery Cables (1m long each, quick connect terminal and 10mm terminal)
• 1 x Pair of Quick Connectors (if using in parallel)
