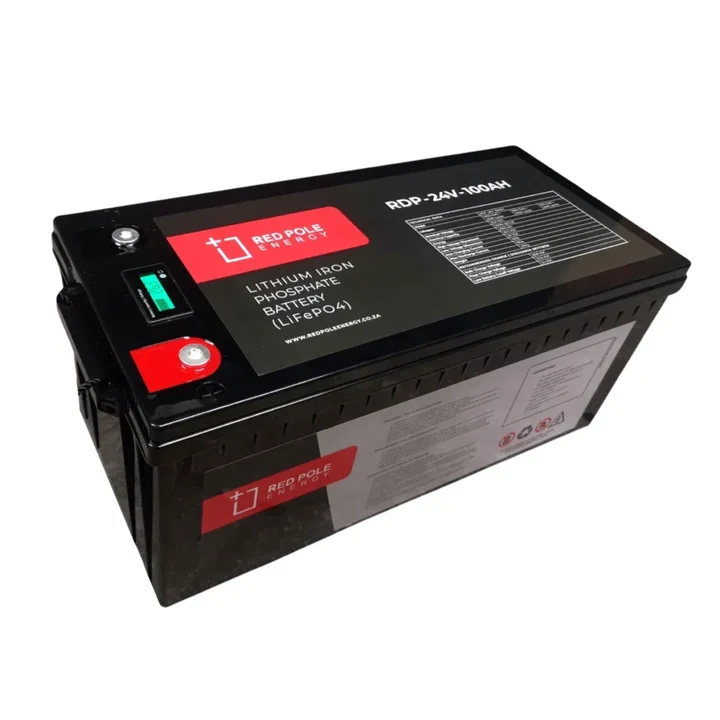

Red Pole Energy 24V 100Ah 2.56kWh LiFePO4 Battery

Our 24V 100Ah Lithium Battery is a drop-in replacement for 2 x 12V 100Ah lead acid batteries in a 24V system. It has a usable capacity of 2.56kWh and an integrated battery management system (BMS) that protects the battery and ensures it’s long lifespan.

The battery is made of ultra safe lithium iron phosphate (LiFePO4) cells sealed in a durable plastic enclosure making it water and dust resistant (IP55). The unit can also be mounted in any position. The battery has a minimum lifespan of 2000 cycles, warrantied for 2 years, with a design life of 5 – 10 years @ 0.2C charging or discharging.

Typical Application

• Single Unit replaces 2 x 12V batteries in a 24V system
• Drop in lithium upgrade replacement for 2 x 12V lead acid batteries
• Storage battery for a 24V backup power inverter
• Storage battery for a 24v inverter off-grid solar system

Product Features

• Ultra safe lithium iron phosphate (LifePO4) cells
• Integrated battery management system (BMS)
• Light weight versus SLA equivalent
• Water and dust resistant (IP55)
• Highly durable sealed plastic enclosure
• Drop-in lead acid replacement (small UPS, inverter, solar battery, camping battery)
• Sealed and non-liquid (No fumes, no leaking, mount in any position)

Technical Specifications

• Lithium Iron Phosphate (LifePO4) Battery Type
• 2.56kWh Usable capacity
• 100 Ah Nominal capacity @ 0.2C
• 25.6 VDC Nominal Voltage
• Operating Voltage Range : 24 VDC to 28.8VDC
• Operating Temp Range : Charge: 0°C to 45°C | Discharge: -20°C to 60°C
• Protection : Over-voltage | Under-voltage | Short circuit | Dust and water resistant
• Lifespan : 2000 cycles @ 0.2C charging, or discharging until 70% capacity
• Dimensions : 522 x 238 x 217 mm (L x W x H)
• Weight : 25kg

Charging/Discharging

• Bulk Charging Voltage : 28.8 VDC
• Float Charging Voltage : 27.6 VDC
• Charge Current : Max 120A
• Discharge Current : Max 100A (Burst 200A, <3s)
• Discharge Voltage Minimum : 24 VDC
• Under-voltage Cut-out : 20 VDC
• Over-voltage Cut-out : 29.2 VDC
• Self-discharge rate : < 3.5% per month

What’s in the box

• 1 x 24v 100Ah (2.56kWh) Lithium Battery
• 2 x 8mm Battery Lugs
