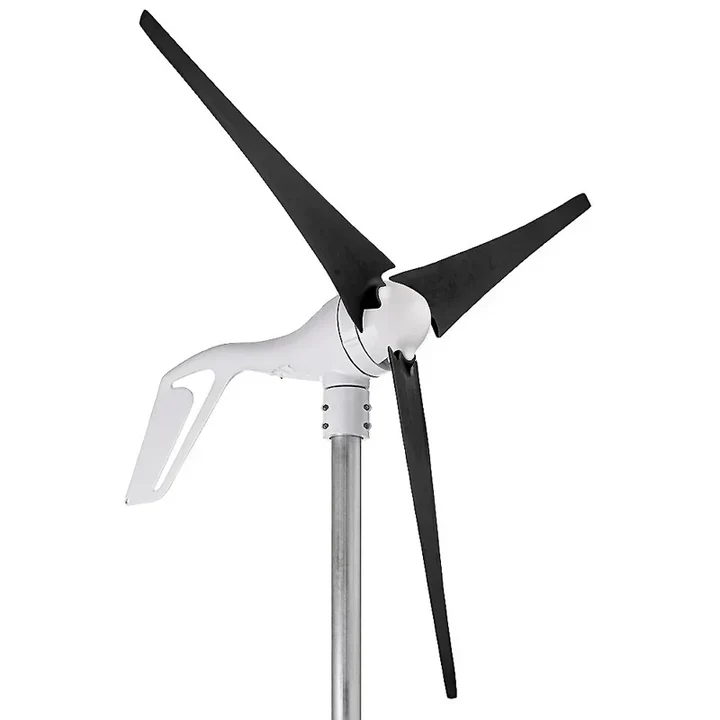

Primus Air 30 400W Wind Turbine with built-in controller

AIR Technical Specifications

• Model: AIR 30.
• Energy Approx.: 30 kWh/mo at 5.5m/s.
• Swept Area: 1.07 m2.
• Weight: 6 kg.
• Rotor Diameter: 1.17 m.
• Start Up Wind Speed: 3.6 m/s.
• Kilowatt Hours/month 30 kWh/month @ 5.4 m/s average wind speed.
• Maximum Wind Speed: 49.2m/s.
• Rated Power 400 watts @ 12.5 m/s wind speed.
• Voltage: 12, 24 and 48 VDC.
• Turbine Controller: Microprocessor-based smart controller.
• Blades: (3) Injection-moulded composite.
• Overspeed Protection: Electronic torque control.
• Mount: 38 mm schedule 40 pipe 48 mm outer diameter.
• Shipping Dimensions: 686 mm x 318 mm x 229 mm and 7.7 kg.
• Optimum Wind Speed Range: 11-15 m/s.
• Alternator: Permanent magnet brushless.
• Body: Permanent mould cast aluminium.
• Certifications: CSA, CE.

Voltage Regulation Set Point (factory setting)

• 12 Volt Systems: 14.1 Volts.
• 24 Volt Systems: 28.2 Volts.
• 48 Volt Systems: 56.4 Volts.

Regulator Adjustment Range

• 12 Volt Systems: 13.6 to 17.0 Volts (approximately).
• 24 Volt Systems: 27.2 to 34.0 Volts (approximately).
• 48 Volt Systems: 54.4 to 68.0 Volts (approximately).
