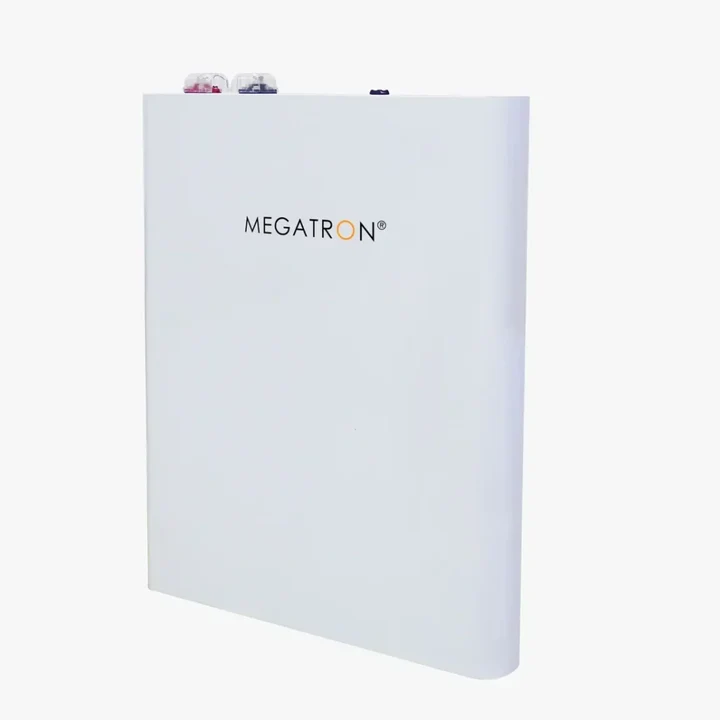

MEGATRON 5.1kwh Lithium Battery

Product Name Ultra Slim LiFePO4 Battery
Module Model MEG-BATT-1
Battery Type LFP 16S
Nominal Capacity 5.12kWh
Usable Capacity 4.86kWh (95% DOD)
Nominal Voltage 51.2V
Working Voltage 43.2 ~58.4Vdc
Charging Voltage 58.4V
Max. Charge Current 100A
Max. Discharge Current 150A
Communication Port RS485, CAN, DRY CONTACT, RS232
Storage Temperature-10 ~35 (Recommended)
Storage Humidity 85% (RH)
Working Temperature
Charging 0 ~50
Discharging -20 ~60
Working Humidity 95% (RH) No Condensation
Working Altitude 2000m
Ingress Protection IP55
Protective Class 1
Weight 49kg
Dimension 780*698*68mm
Design Life 10 Years (25 )
Cycle Life 6000 (25 ), 60% EOL
Scalability Module: Max. 16 in parallel (Capacity 81.92kWh)
Certification CE, IEC62619, UN38.3
