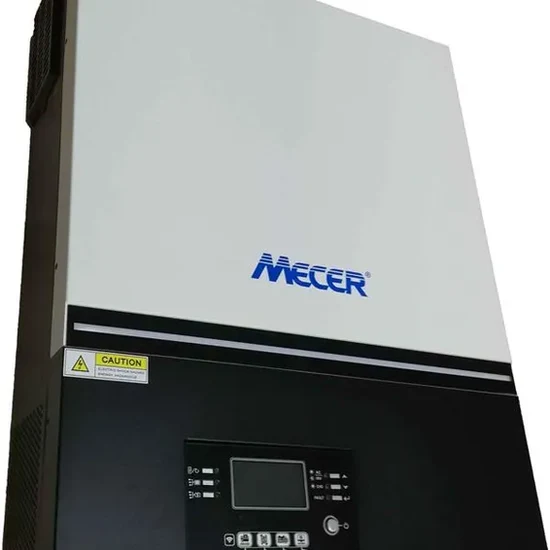

MECER Off Grid 8kVA 8kW MPPT 48V

Are you tired of power outages and load shedding disrupting your daily activities? Introducing the Mecer Off-Grid 8KVA 8KW Inverter – Axpert 8K Hybrid Pure Sine Wave Inverter, the perfect solution to keep your essential appliances running during power interruptions. Designed to tackle South Africa`s load shedding challenges, this powerful inverter provides reliable backup power to ensure uninterrupted operations.

With its impressive 8000VA/8000W power output, this hybrid pure sine wave inverter delivers clean and stable energy to safeguard your sensitive devices and appliances. The customisable status LED bar with RGB breathing lights adds a touch of style while providing visual feedback on the inverter`s operating status.

Stay connected and monitor your inverter`s performance from anywhere using the built-in Wi-Fi feature. Simply download the Android or iOS app and access real-time data and control options conveniently from your mobile device.

The Mecer Off-Grid 8KVA 8KW Inverter is equipped with advanced features for enhanced functionality and ease of use. The USB On-the-Go function allows you to connect compatible devices for charging or data transfer. The reserved communication port offers seamless integration with a Battery Management System (BMS) through RS485, CAN-BUS, or RS232 protocols. Additionally, the replaceable fan design ensures easy maintenance, and the built-in anti-dust kit keeps the inverter`s components clean and efficient.

You can expand your power backup capacity by connecting up to 6 units of this inverter in parallel operation, providing additional power and redundancy when needed.

Specifications:

• Model: SOL-I-AXMAX-8K48V
• Rated Power: 8000VA/8000W
• Parallel Capability: Yes, 6 units

Input:

• Voltage: 230 VAC
• Voltage Range: 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto sensing)

Output:

• AC Voltage Regulation (Batt. Mode): 230VAC ± 5%
• Efficiency (Peak): 90% ~ 93%
• Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform: Pure sine wave
• No Load Power Consumption: <70W

Efficiency:

• Battery Voltage: 48 VDC
• Floating Charge Voltage: 54 VDC
• Overcharge Protection: 66 VDC

Solar Charger & AC Charger:

• Solar Charger Type: MPPT
• Maximum PV Array Power: 8000W (4000W x 2)
• MPP Range @ Operating Voltage: 90 ~ 450 VDC
• Maximum PV Array Open Circuit Voltage: 500 VDC
• Number of MPP Trackers: 2
• Maximum Solar Charge Current: 120 A
• Maximum AC Charge Current: 120 A
• Maximum Charge Current: 120 A

Physical:

• Dimension (D x W x H): 147.4 x 432.5 x 553.6 mm
• Net Weight: 18.4 kg
• Communication Interface: USB/RS232/RS485/Wifi/Dry contact
• IP Rating: IP21

Environment:

• Altitude: 1000m and de-rate by 1% for every 100m above 1000m
• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: -10°C to
