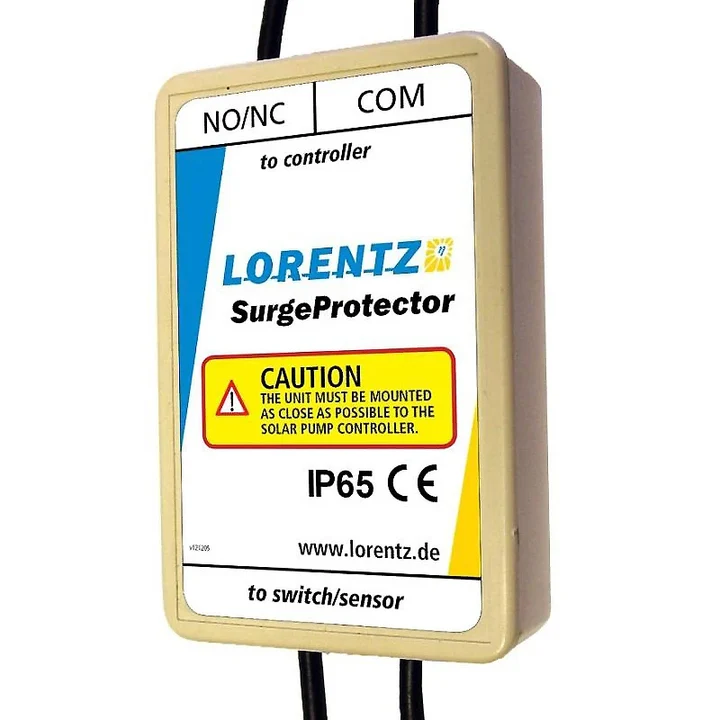

Lorentz Surge Protector for Dry Run Well Probe

Features
• Reliable surge protection for all Lorentz pump accessories.
• Can be installed inside the PS Controller.

Technical Data
• Max. Voltage – 14 VDC.
• Max current 8/20µs – 500 A.
• Enclosure class: IP54.
• Ambient temperature – max. 50°C.
• Wire size – 2x 1.5mm² or AWG 16.

Dimensions / Weight
• Packing dimensions – 70mm x 45mm x 20 mm.
• Total weight – 0.1 kg.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
