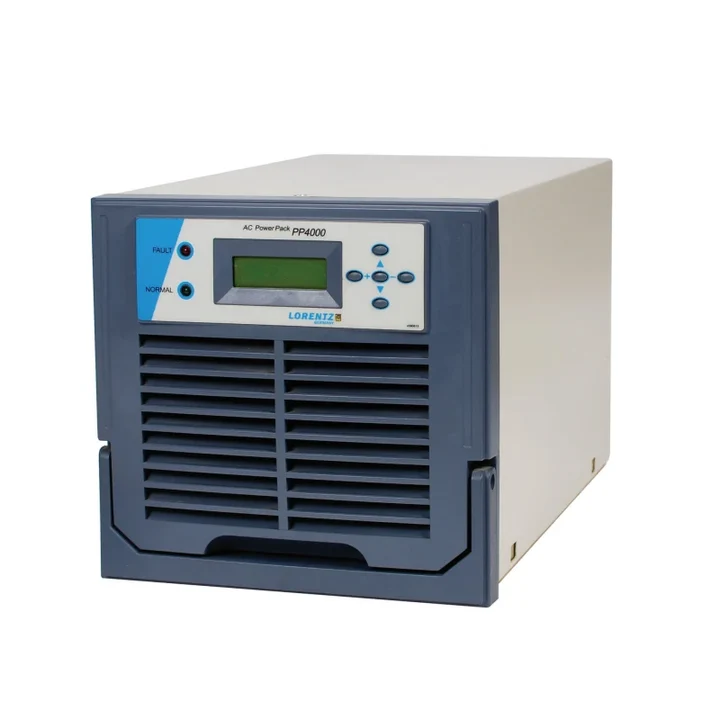

Lorentz PP4000 AC Power Pack

AC/DC converter to power PS1200 and PS1800 pump systems from a generator or utility power.

Technical Data

• Input power: max. 6,1 kW (max. 6,75 kVA).
• Power factor: min. 0,9.
• 3-phase AC input: 380V (±20%), 45 to 65Hz.
• DC output: 180-286 V, 5.7 kW.
• DC output rated current: 20A at 230VDC.
• Integrated overload protection.
• Must be protected from direct mid-day sun.
• Enclosure class: IP 42.
• Ambient temperature: –5 °C to 45 °C (23 °F to 113 °F).
• Efficiency up to 94 %.
• Dimensions: 332mm × 210mm × 201.8mm.
• Weight: 14.5 kg.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
