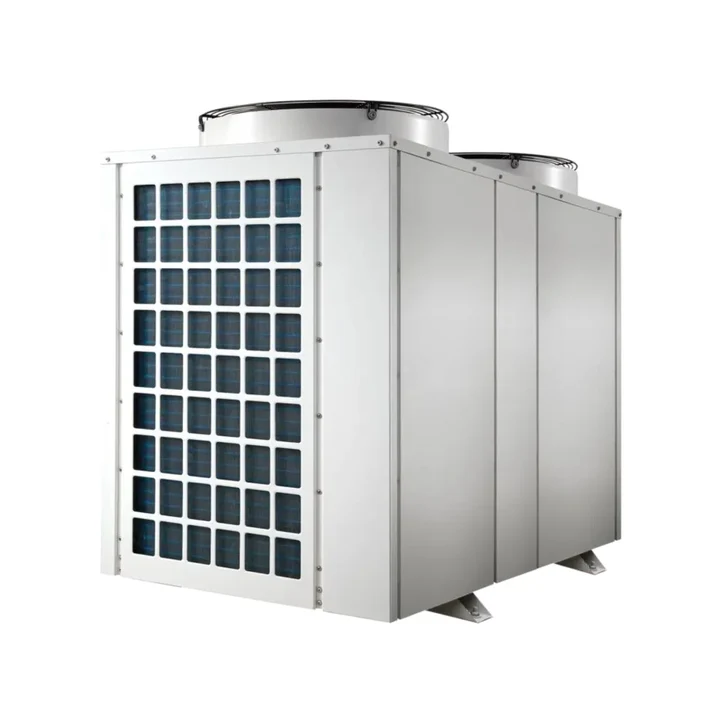

ITS 50kW Commercial Pool Heat Pump

ITS Non-Inverter R410a Commercial Pool Heat Pump Range.

ITS pool heating heat pumps are designed to make you get the most enjoyment from your pool. With pool temperatures programmable up to 40°C you can now swim all year round. No longer do you need to spend thousands of Rand on electricity. ITS heat pumps are compact, quiet and easy to install. It will provide you with many years of trouble-free pool heating.

ITS pool heat pumps use the latest in heat pump control technology resulting in extremely low operational costs. For every R1.00 worth of electricity this unit can give you more than R5.00 worth of output heat. For even greater efficiency please have a look at our new inverter type pool heat pumps.

Key Features:

• Model: ITS-50VP3
• For Pool Sizes up to 150 000 litres
• Heat and get the most enjoyment from your pool all year round at a fraction of the cost of an electric heater.
• Uses environmentally friendly R410a gas
• The titanium heat exchanger provides superior corrosion resistance with 2″ standard coupling connections for easy installation
• The latest technology with easy to control LCD screen
• Adds value to your business
• Silent, compact and great value for money
• DIY installation possible for suitable skilled
• Supported nationwide by ITS branches
• Limited extended 5-year warranty included

General Specifications

• Model Number: ITS-50VP3
• Power Supply: 380/3/50Hz

Heating Capacity at Air 27°C / Water 27°C (In 24°C, Out 29°C)

• Heating Capacity: 50 kW
• Power Input: 8.4 kW
• COP: 5.95

Heating Capacity at Air 15°C / Water 26°C (In 12°C, Out 28°C)

• Heating Capacity: 42 kW
• Power Input: 8.6 kW
• COP: 4.88

Cooling Capacity at Air 35°C / Water 29°C (In 24°C, Out 27°C)

• Cooling Capacity: 36 kW
• Power Input: 10.5 kW
• EER: 3.42
• Max Power Input: 13.2 kW
• Max Current: 23.5 A

Additional Specifications

• Refrigerant: R410
• Compressor Type: Scroll
• Heat Exchanger: Titanium
• Expansion Valve: Electronic
• Air Flow Direction: Vertical
• Water Flow Volume: 20 m³/h
• Net Dimensions (L × W × H): 1416 × 752 × 1055 mm
• Working Temperature Range: –15°C to +43°C
• Noise Level: < 65 dB
• Net Weight: 350 kg
• Water Connections: 63 mm

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
