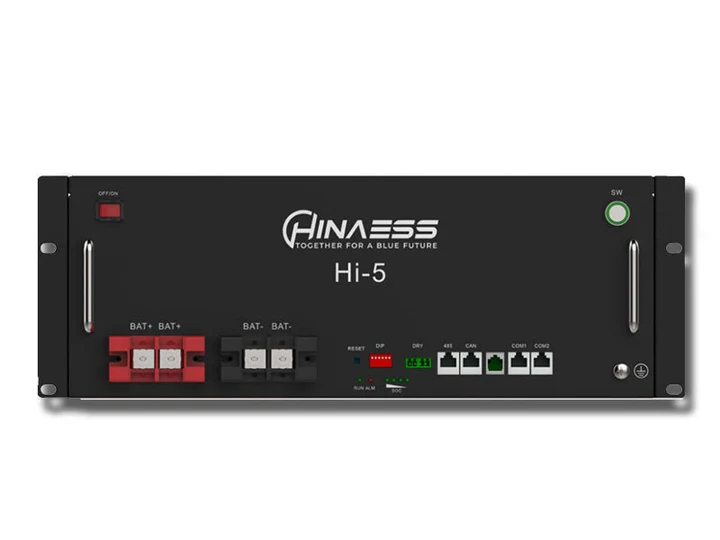

Hina ESS 5.12KWH Battery (HI-5)

The Hina ESS 5.12kWh Lithium Battery Hi-5.

It is an excellent choice for residential and commercial applications Ultra Safe LFP Material: Built with Lithium Iron Phosphate (LFP) material, this battery ensures ultra-safety, offering enhanced stability and protection for your energy storage needs, Together for the Blue Future.

Product Advantages:

10 year warranty

Ultra safe LFP material

Short circuit protection

Flexible remote upgrade

Wide range inverter compatibility

Parallel up to 32 modules

1C rate continuous charge/discharge

Multi protection to avoid over discharge

Smart BMS management for longer lifespan

Active balancing charging, low self consumption

Description

• Model: Hi-5
• Cell Type: LFP
• Rated Power: 5.12KWH
• Rated Capacity: 100Ah
• Rated Voltage: 51.2V
• Charge Voltage: 56.5V
• Charge / Discharge Rating: 1C
• Maximum Charge / Discharge Current: 100A
• Discharge Peak Current: 105A – 15s / 120A – 0.5s
• Parallel Capacity: Up to 32 Units
• Mounting Type: Rack Mount
• Enclosure Protection: IP20
• Communication: CAN / RS485
• Humidity: 5% to 85% (Non-Condensing)
• Working Temperature: -20°C to 55°C
• Storage Temperature: -10°C to 35°C
• Certification: CE UN38.3 / IEC62619
• Weight: 50kg
• Dimensions: 48.1 x 45.26 cm
