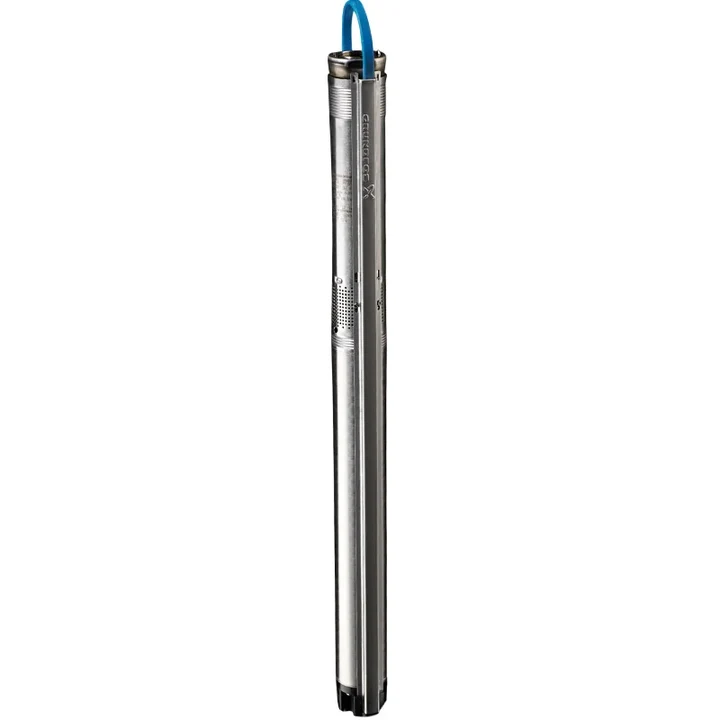

Grundfos SQF 5A-7N Submersible Pump

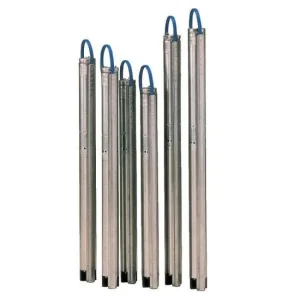

The Grundfos SQ 3″ submersible pumps offer a wide performance range, making it easy to find a model that will suit your individual requirements.

The SQ is a compact, 3″ multistage centrifugal pump that can be installed in a borehole no larger than the pump itself. With their built-in electronics, SQ pumps are very easy to install and operate. They guarantee a reliable water supply at all times. Equipped with permanent magnet motors, these flexible and compact pumps offer excellent efficiency levels and will supply pump heads up to 200 m.

If the SQ pump is connected to the Grundfos CU 301 control box, it enables the creation of a constant pressure water supply.

Applications

SQ/SQE pumps are suitable for both continuous and intermittent operation for a variety of applications:

Ground water supply – private housing, small waterworks, small irrigation systems.
Liquid transfer in tanks.
Pressure boosting.
Environmental applications – remedial pumping or sampling.
Garages and petrol stations.

Features and benefits

Dry-running protection
Permanent magnet motor with high efficiency
Wear resistance from floating impellers
Protection against upthrust
High flow velocity
Soft-starts reduce wear on motor
Over- and under-voltage protection
Overload protection
Over-temperature protection.

Additional features of the SQE

Variable motor speed controls (with connection to the CU 301).
Connection to the CU 301 for two-way communication.

Technical Specifications:

Power Supply: 30-300V DC
90-240V AC (50/60Hz)
Maximum power input: 1400W
Optimum current: 8.4A (can handle 10A)
Enclosure class: IP68
Diameter: 101mm
Max head: 70m
Max litres/h: 5000
316 stainless steel
Weight: 12.6 Kilograms
Warranty: 2 years
