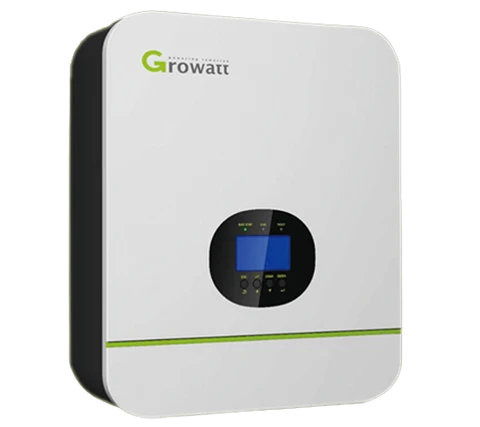

Growatt SPF 3000TL HVM-24 3kVA-3kW 24V Hybrid Inverter with WiFi

Specifications
General

• Model: SPF 3000TL HVM-24
• Battery voltage: 24VDC.
• Warranty:  2 years

Inverter Output

• Waveform: Pure Sine-Wave.
• Rated Power: 3000VA/3000W.
• Parallel Capability: No.
• AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
• Surge Power: 6000VA.
• Efficiency (Peak): 93%.
• Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).

Solar Charger

• Maximum PV Array Power: 1000W.
• MPPT Range @ Operating Voltage: 30VDC ~80VDC.
• Standby Power Consumption: 2W.
• Maximum PV Array Open Circuit Voltage: 100VDC.
• Maximum Efficiency: 97%.
• Maximum Solar Charge Current: 50A.

AC Charger

• Charge Current: 30A.
• AC Input Voltage: 230 VAC.
• Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
• Frequency Range: 50Hz/60Hz (Auto sensing).

Physical

• Dimension (D/W/H) in mm: 53cm x 40cm x 21cm
• Net Weight (kgs): 11.
