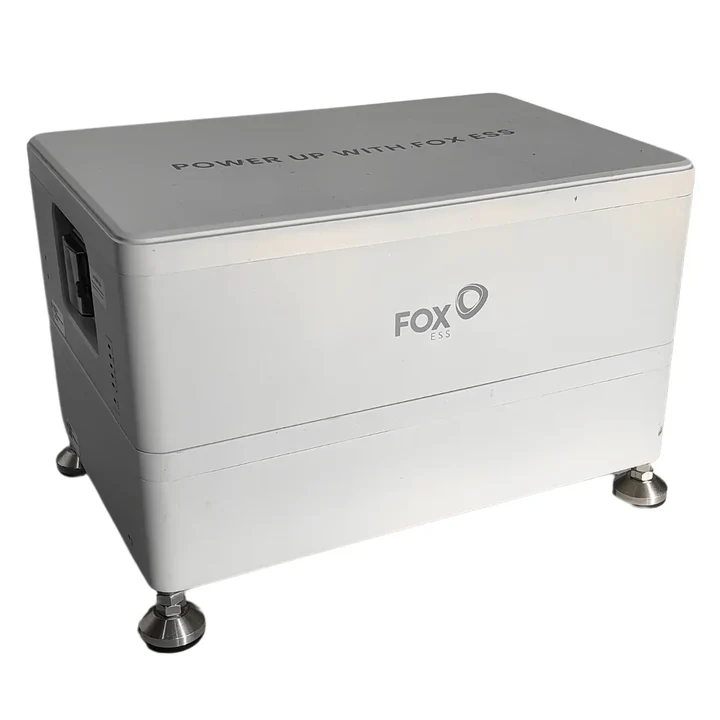

Fox ESS Energy Cube 4800 HV Lithium Ion Battery
R 35 499,00
The ECS is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 19.35 kWh. Installation is easy, with a plug and play
solution that can save valuable time for installers
- 4.74kWh capacity
- Scalable to 33.24 kWh
- 90% Depth of Discharge
- Large temperature tolerance
- Easy installation
- CAN communication
- High voltage
| Specification | ECS4800-H2 | ECS4800-H3 | ECS4800-H4 | ECS4800-H5 | ECS4800-H6 | ECS4800-H7 |
|---|---|---|---|---|---|---|
| Battery Type | LiFePO4 Prismatic Cell | |||||
| Battery Module | 1*CM4800 | 2*CS4800 | 3*CS4800 | 4*CS4800 | 5*CS4800 | 6*CS4800 |
| Nominal Capacity [Wh] | 9320/9490(3C) | 13980/14240(3C) | 18640/18990(3C) | 23300/23740(3C) | 27960/28490(3C) | 32610/33140(3C) |
| Nominal Voltage [V] | 89.6 | 134.4 | 179.2 | 224 | 268.8 | 313.6 |
| Operating Voltage [V] | 81.2 – 103.8 | 121.5 – 154.5 | 162.4 – 206 | 203 – 257.6 | 244.6 – 309.1 | 284.2 – 360.6 |
| Recommend Discharge Current [A] | 25 | |||||
| Max. Charge/Discharge Current [A] | 50 | |||||
| Peak Discharge Current [A] | 65 @30sec | |||||
| Battery Pack Round-Trip Efficiency [%] | >95 | |||||
| Depth of Discharge [%] | 90 | |||||
| Cycle Life | ≥6000 | |||||
| Communication | CAN | |||||
| Display | CS: LED*1, CM: LED*6 | |||||
| Scalability | Max. 7 Modules in Series | |||||
| Operating Conditions | ||||||
| Installation Location | Outdoor/Indoor (Stand) | |||||
| Operating Temperature [°C] | Charge: 0 – 55, Discharge: -10 – 55 | |||||
| Storage Temperature [°C] | -10 – 35 | |||||
| Cooling Method | Natural Convection | |||||
| Humidity [%] | 5 – 95 (No Condensing) | |||||
| Altitude [m] | Max. 2,000 | |||||
| Mechanical Characteristics | ||||||
| Dimensions (W*H*D) [mm] | 570*380*386 | 570*380*524 | 570*380*662 | 570*380*800 | 570*380*938 | 570*380*1076 |
| Weight [kg] | 82±1 | 121±15 | 160±2 | 199±2.5 | 238±3 | 277±3.5 |
| Certificates | ||||||
| Safety | IEC 62619 | |||||
| EMC | EN IEC 61000-6-1/2/3/4 | |||||
| Transportation | UN38.3 | |||||
| Ingress Protection | IP65 | |||||
