Deye 3.6Kw Hybrid Inverter

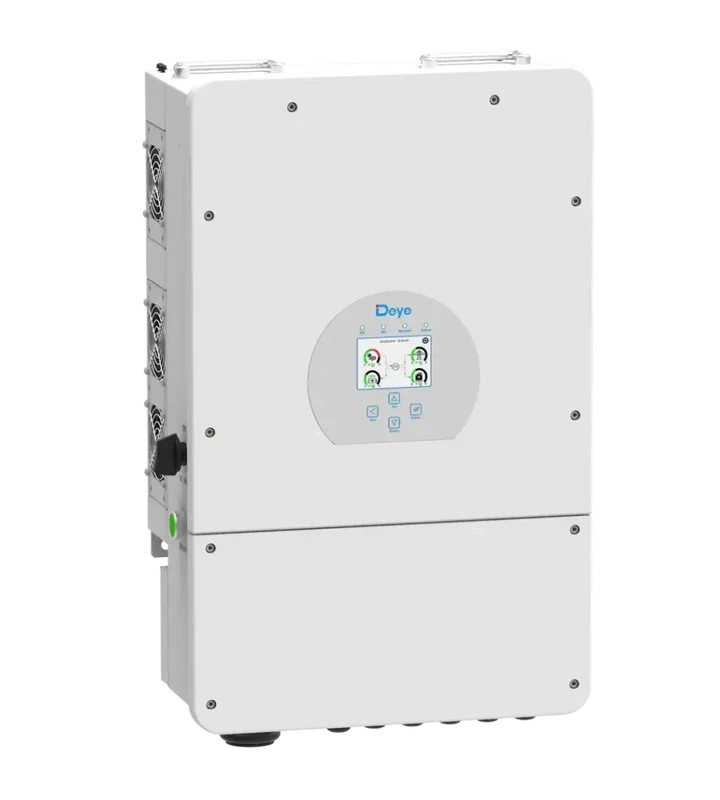

The Deye 3.6kW Hybrid Inverter is a high quality IP65 rated inverter with NRS 097 : 2017 and IEC 62116 approval.

It is rated for 3.6kW 230V output single phase, 35A passthrough capability and 15.7A generation capacity.

It features:

• On-grid blending of PV power and utility power with export limit control to bring down your electricity bills
• Off-grid backup power capability, perfect for loadshedding events
• 3600W continuous output power and peak surge capacity of 7200W for 10 seconds
• Ability to expand system by parallel connection of additional inverters
• Up to 4680W solar PV power input
• 2 x MPPT inputs rated for high voltage solar panel DC voltages up to 500V and 13A each
  • Ideal for optimising PV module string level output power and systems with two separate PV module arrays
• Integrated lightning protection from solar inputs
• 48V Battery backup input for use with Lead-Acid and Lithium-Ion batteries using included CAN or RS485 communication port
• Wi-Fi connectivity dongle for monitoring via Android or Apple phones
• Dedicated onboard input and changeover for use with backup generator
• 5 Year warrantee

Higher yields

• • • Improve self-consumption ratio up to 80%, reducing your electricity bill
    • DC/AC ratio up to 1.3, completely suitable for double-side PV modular
    • Two MPPT design, Max. efficiency of 97.6%

User-friendly

• • • LCD Touch screen and buttons, easy operation
    • Compatible with lithium-ion battery and lead acid battery
    • Web browser and mobile App monitoring supported

Reliable

• • • PV lightning protection, Anti-islanding protection, Leakage current protection etc
    • IP65 protection degree, adapt to indoor and outdoor use
    • Automatically switch from on-grid to off-grid mode within 5ms
    • Zero exporting function, fast reaction within 200ms in zero export mode

Smart

• • Programmable charging and discharging schedule
  • Both wind turbines and solar panels can be connected as input power
  • Max. 16 units can be paralleled for higher system power
  • Retrofitting of existing solar system to energy storage system
