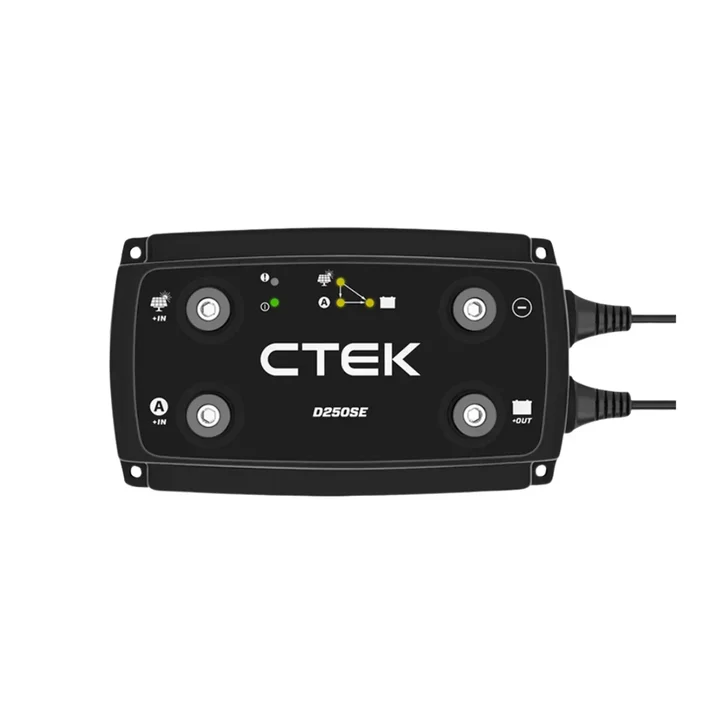

Ctek D250SE Dual Charger Charge Controller

The D250SE is a fully automatic, 5 step charger that supplies up to 20A of power to any 12V lead-acid or ­lithium* service battery from 40-300Ah. It has ­selectable charge algorithms for AGM and lithium* batteries and can use power through its dual input from alternator and solar panel. When the service battery is fully charged, the D250SE will ­automatically redirect maintenance charge ­power to the starter battery. The D250SE can maintain a stable output up to 20A to vehicles fitted with smart ECU controlled ­alternators and also has a temperature sensor for ­optimised charging, regardless of weather conditions. *) 12V lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP)

Features

• Battery support on the go
• Smart alternator compatible
• Achieve maximum power from your solar output
• Charge service and starter batteries
• Built-in temperature sensor
• 12V | Dual input 20A charger with selectable charge voltages
• 20A fully automatic temperature compensated charging for batteries from 40-300Ah while you’re on the move
• Dual input (solar and alternator in parallel)
• Smart alternator compatible
• Selectable lithium* and lead-acid mode
• Solar panel regulator with Maximum Power Point Tracking (MPPT)
• Battery separation replacing diodes and VSR relays
• Selectable AGM option – 14.4V or 14.7V
• Maximised charging for better battery life and performance
• Temperature sensor to compensate for hot or cold conditions
• Splash and dust proof (IP65)
• Compatible with SMARTPASS 120, SMARTPASS 120S for the ultimate 140A power management solution
• 2-year warranty
• Charging category DC charging

Technical Data

• Input: 11.5-23 V, 25 A
• Output: 14.4/14.7 V, 20 A, lead-acid battery types. 14.2 V, 20 A, LiFePO₄.
• Battery chemistry: Lead acid; Lithium-ion
• Battery types12 V:; WET; MF; Ca/Ca; AGM; EFB; GEL; LiFePO₄
• Battery capacity: 40-300 Ah
• Back current drain: *Corresponding to less than 1 Ah/month
• Battery voltage: 12V
• Ambient operating temperature: -20 ˚C to +50 ˚C (- 4 °F to +122 °F)
• Ripple: **Less than 4 %
• Degree of protection: IP65
• Gross weight (unit in box): 0.9 kg
• Dimensions (L x W x H): 192 x 110 x 65 mm
• Net weight (unit with cables): 0.7 kg
• MPPT: Yes
• Warranty: 2 years

With award winning Swedish technology, the dual input D250SE allows you to enjoy your vehicle more with maximized battery capacity as the ideal charger for vehicles without access to a mains power supply.
