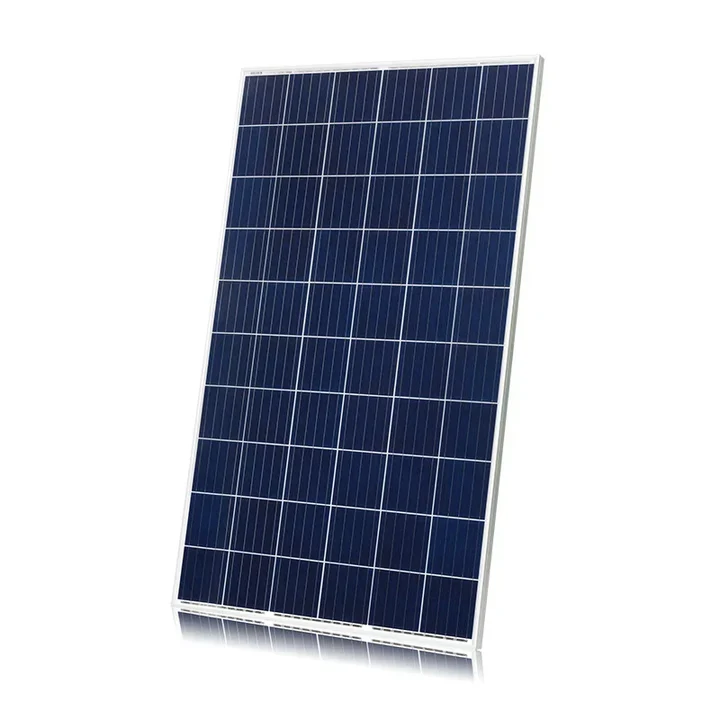

CNBM 6P-160 160W Mono Solar Panel

CNBM Solar photovoltaic (PV)module is designed for large electrical power requirements. It is the optimal choice for both on-grid and off-grid power systems. CNBM Solar panel offers high performance of power per square foot of solar array. Large blocks of molten silicon carefully cooled and solidified. Cell binned by current to improve module performance. Outstanding performance in low-light irradiance environments.

Products Characteristics
Widely using of the most popular and mature type of modules for off-grid system.
Leading manufacturing technology in PV industry, strictly controlling the quality of raw materials and the process of producing.
100% EL inspection, ensures modules are defects free.
Cells binned by current to improve module performance.
Anti-reflective glass. Not only to increase the light absorption, but also to make the module has the function of self-cleaning in water environment, effectively reducing the power loss caused by dust.
Outstanding performance in low-light irradiance environments.
Excellent mechanical load resistance: Certified to withstand high wind loads(2400pa) and snow loads(5400pa).
High salt and ammonia resistance.
Positive power tolerance: 0-+5w.
Warranty
10 years product warranty.
10-years 90% of Min. rated output power, and 25-years 80% of Min. rated output power warranty.
Comprehensive Certificates
ISO Certificate.
SGS-TUV Certificate.
CQC Certificate.
IEC61215, IEC61730 Certificate
CE Certificate
Raw materials and Mechanical Parameters
Cell Type (mm): 182mm Mono Multi-Cut
NO. of Cells and Connections (9): 4 ×16 =64
Dimensions(mm)(L*W*H): 1045 ×766 ×28.
Weight(kg): 9.
Front Glass: 3.2mmTempered Glass.
Frame: Anodized aluminium alloy.
Junction Box: IP68 rated (3by pass diodes)
Output Cables: 4.0mm² – 300mm(+) 300mm(-). Length can be customised.
Connectors: MC4 Compatible
Performance Parameters
Maximum System Voltage: 1500V.
Operating Temperature: -45~+80℃.
Maximum Static Load, Front Side (e.x. Snow, Wind): 5400Pa.
Maximum Static Load, Back Side (e.x. Wind): 2400Pa.
Application Grade: Class A
Power Tolerance: 0/+5W
Maximum Series Fuse: 25A
Electrical Parameters (Standard Test Condition)
Rated Maximum Power (Mp): 160W.
Cell Efficiency: 20%.
Open Circuit Voltage (Voc): 24.73V.
Maximum Power Voltage (Vmp): 21.02V.
Short Circuit Current (Isc): 8.04A.
Maximum Power Current (Imp): 7.62A.
Normal Operating Temperatures(NMOT): 45+-2℃
Temperature Coefficient of Isc: +0.05% ℃
Temperature Coefficient of Voc: -0.28% ℃
Temperature Coefficient of Pmp: -0.36% ℃
Standard Test Condition: Irradiance:1000W/M2, Cell Temperature:25℃, Spect-4rum AM:1.5.
The Electrical Parameters of the module are the average theory figure under the standard test condition, each one exists difference. Cannot be treated as the basis of module delivery.
