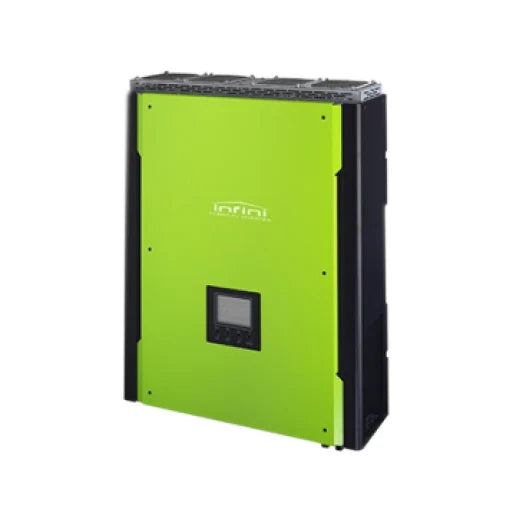

Mecer Infini Solar 15kW 3-Phase Dual MPPT Hybrid Inverter

• Pure sine wave output
• Self-consumption and Feed-in to the grid
• Programmable supply priority for PV , Battery or Grid
• User-adjustable charging current up to 300A
• Programmable multiple operation modes: Grid-tie , off-grid & grid-tie with backup
• Built-in timer for various mode of on/off operation
• Multiple communication for USB, RS-232, Modbus and SNMP
• Monitoring software for real-time status display and control
• Parallel operation up to 6 units
• Warranty: 24 months

Technical Specifications

• Model: InfiniSolar 15KW.
• Phase: 3-phase in/3-phase out.
• Max. PV Input Power: 22500W.
• Rated Output Power: 15000W.
• Maximum Charging Power: 15000W.

Grid-Tie Operation
PV Input (DC)

• Nominal DC Voltage/Max. DC Voltage: 720 VDC/900 VDC.
• Start-up Voltage/Initial Feeding Voltage: 320 VDC/350 VDC.
• MPP Voltage Range: 350VDC~850 VDC.
• Number of MPP Trackers/Maximum Input Current: 2/A:37.65A , B: 18.6A

Grid Output (AC)

• Nominal Output Voltage: 230 VAC (P-N) / 400 VAC (P-P)
• Output Voltage Range: 184 -264.5 VAC per phase
• Nominal Output Current: 21.7A per phase
• Power Factor: >0.99.

Efficiency

• Maximum Conversion Efficiency (DC/AC): 96%.
• European Efficiency @ Vnominal: 95%.

Off-Grid Operation
AC Input

• AC start-up Voltage/Auto Restart Voltage: 120-140 VAC per phase/180 VAC per phase.
• Acceptable Input Voltage Range: 170-280 VAC per phase.
• Max. AC Input Current: 40A.

PV Input (DC)

• Max. DC Voltage: 900 VDC.
• MPP Voltage Range: 350 VDC~850 VDC.
• Number of MPP Trackers/Max. Input Current: 2/A: 37.65A, B:18.6A

Battery Mode Output (AC)

• Nominal Output Voltage: 230 VAC (P-N)/400 VAC(P-P).
• Output Waveform: Pure Sinewave.
• Efficiency (DC to AC): 91%.

Hybrid Operation
PV Input (DC)

• Nominal DC Voltage/Max. DC Voltage: 720 VDC/900.
• Start-up Voltage/Initial Feeding Voltage: 320 VDC/ 350 VDC.
• MPP Voltage Range: 350 VDC~850 VDC.
• Number of MPP Trackers/Max. Input Current: 2/A: 37.65A , B: 18.6A

Grid Output (AC)

• Nominal Output Voltage: 230 VAC (P-N)/400 VAC(P-P).
• Output Voltage Range: 184-264.5 VAC per phase.
• Nominal Output Current: 21.7A per phase.

AC Input

• AC Start-up Voltage/Auto Restart Voltage: 120-140 VAC per phase/180 VAC per phase.
• Acceptable Input Voltage Range: 170-280 VAC per phase.
• Max. AC Input Current: 40A.

Battery Mode Output (AC)

• Nominal Output Voltage:230 VAC (P-N)/400 VAC(P-P)
• Efficiency (DC to AC): 91%.

Battery & Charger

• Nominal DC Voltage: 48 VDC.
• Max. Charging Current: Default 60A, 5A-300A (Adjustable).

General
Physical

• Dimension (D x W x H) (mm): 219 x 650x 820
• Net weight (kgs): 62

Interface

• Communication Port: RS-232/USB and Dry contact
• Intelligent Slot: Optional SNMP, Modbus and AS-400 cards available.

Environment

• Humidity: 0~90% RH (Non-condensing).
• Operating Temperature: -10 to 55 °C
• Altitude: 0-1000 m.
